Fuel cell type breath alcohol content detector

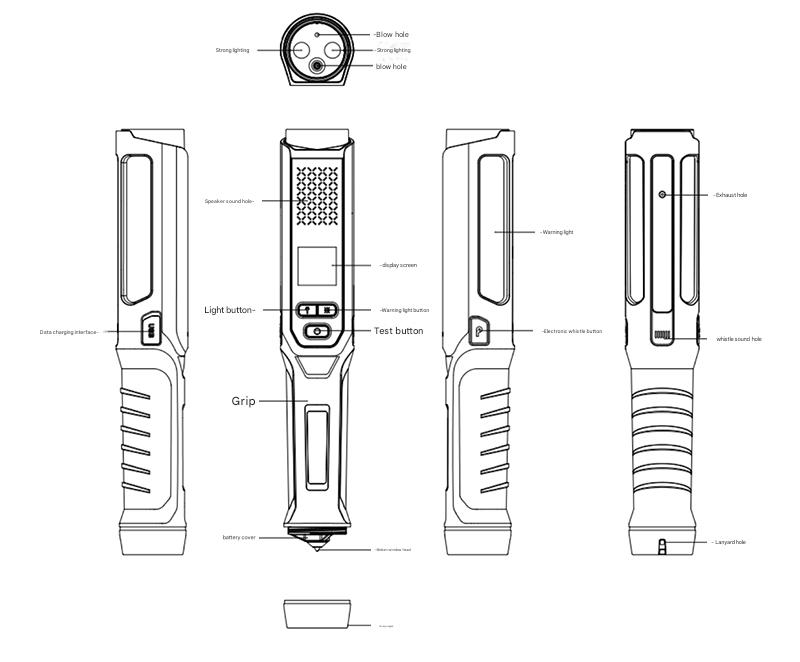

I. Appearance Diagram and Button Description

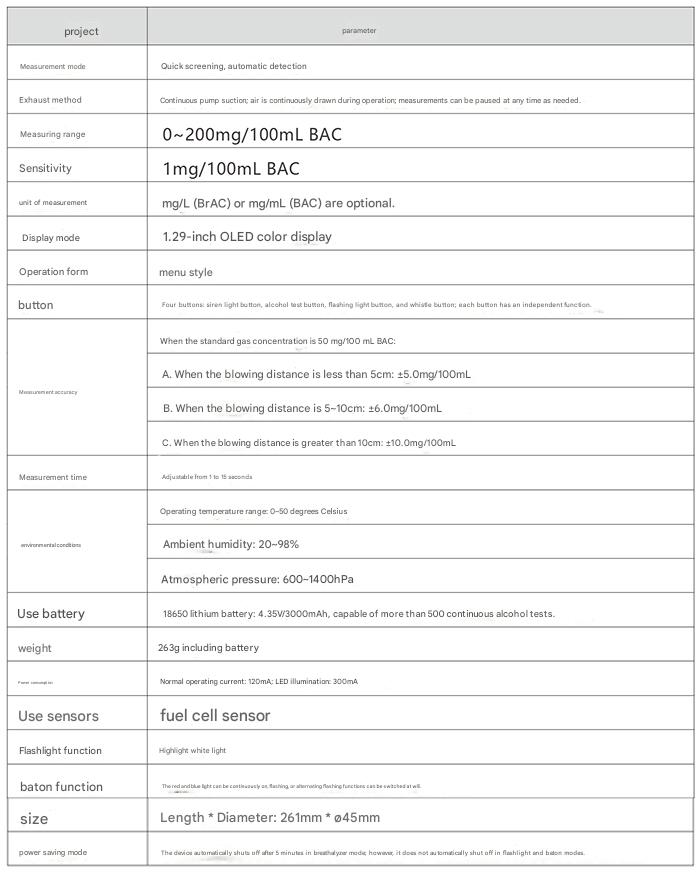

II. Specifications
III. Instructions for Use
Before use, please check that the batteries are installed correctly. Unscrew the battery cover counterclockwise, insert the batteries into the battery compartment according to the positive and negative terminals, and tighten the battery cover clockwise.
I. Alcohol Concentration Detection

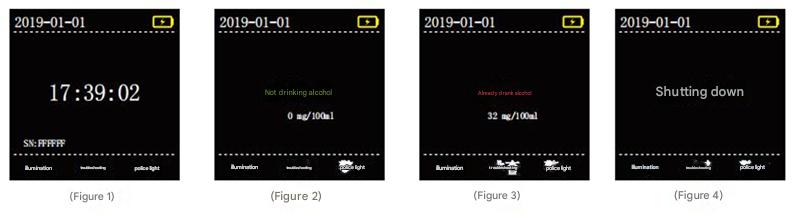

Press and hold the "Alcohol Test Button" for 2 seconds to turn on the machine. The screen will display the power-on screen (Figure 1).
Press again briefly. A voice prompt will say "Please blow." After blowing for 2-4 seconds:
A. If no alcohol is detected in the sample, a voice prompt will say "Thank you for your cooperation," and the screen will display "No alcohol consumed" (Figure 2).
B. If alcohol is detected in the sample, the indicator light will flash red and blue, and a voice prompt will say "Sorry, you have consumed alcohol," and the screen will display "Drank alcohol + alcohol concentration (00mg/100mL)" (Figure 3).
After powering on, press and hold the "Alcohol Test Button" for 3 seconds to turn off the machine. The screen will display the power-off screen (Figure 4).
Note: It is best to turn off the indicator stick and flashlight when conducting alcohol concentration testing to avoid unnecessary visual interference to the person being tested.
II. Indicator Stick Operation: Briefly press the "Warning Light" button to turn the indicator stick on continuously. Short presses cycle through the following modes: continuously lit, strobe, alternating flash, and off.
III. Flashlight Operation: Briefly press the "Lighting" button to turn the lighting on continuously. Short press again for alternating flashing. Short press again to turn off the lighting.
IV. Whistle Operation: Briefly press the "Electronic Whistle" button; the machine will beep once. Long press the "Electronic Whistle" button; the machine will beep...

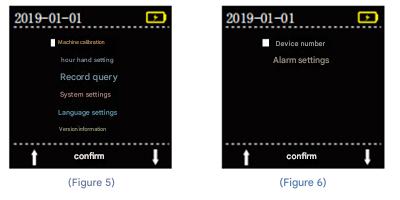

V. Menu Settings: With the device powered on, press the "Lighting" and "Warning Light" buttons simultaneously to enter the menu settings interface. Use the "Lighting" and "Warning Light" buttons to navigate up and down, press the "Alcohol Test" button to confirm, and press both buttons simultaneously to return to the previous screen.
You can configure or view eight menu items: "Machine Calibration, Clock Setting, Record Query, System Settings, Voice Settings, Version Information, Device Number, and Alarm Settings".
VI. Window Breaker
Screen the window breaker cap counterclockwise to open. The window breaker can be used in emergencies.
VII. Magnet
The handle has a magnet at the end, allowing the device to be attached to metal.
VIII. Charging Operation
Use the included adapter and USB cable to connect to the device's USB port for charging. The display screen and red indicator light on the head will illuminate during charging. A full charge takes approximately 3 hours.
IX. Applications
The breathalyzer is suitable for traffic police to quickly detect drunk driving. It can also be used in government agencies, mining and transportation companies for inspections in hazardous work areas, and for drunk driving prevention in entertainment venues.
X. Product Function Description
The breathalyzer uses a rapid detection method, continuously extracting the breath of the person being tested to quantitatively or qualitatively determine whether the person has consumed alcohol. The instrument can analyze and determine the result within 3 seconds. The instrument has extremely high sensitivity, minimizing the possibility of false negatives.
IV. Precautions:
1. Prevent the device from falling from a height or being subjected to severe vibration;
2. This product must not be stored or used in environments containing corrosive gases (such as chlorine);
3. This product must use the original manufacturer's supplied 4.35V/3000mAh 18650 lithium battery, and the battery must not be placed in high-temperature environments;
4. Please use the power adapter supplied by the manufacturer when charging. Using a non-standard power adapter may damage the instrument.
