Breath alcohol content detector

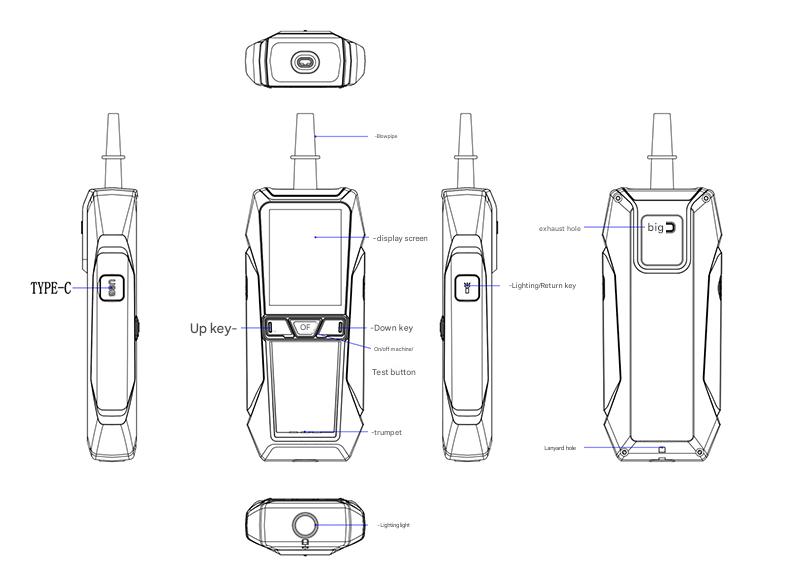

I. Appearance Diagram and Button Description
II. Specifications
|
project |
Indicators and parameters |
|
|
alcohol test |
Alcohol sensor type |
Electrochemical fuel cells |
|
Measuring range |
0 mg/100mL～400 mg/100mL |
|
|
resolution |
1 mg/100mL |
|
|
Sensitivity |
5 mg/100mL |
|
|
Indication error |
Meets the tolerance requirements of GB/T 21254—2017 |
|
|
Operating temperature range |
-5℃～+50℃ |
|
|
Storage temperature range |
-30℃～+70℃ |
|
|
Baseline operating environment conditions |
Temperature: 25℃±5%, Humidity: <80%RH, Atmospheric pressure: 86 kPa～106 kPa |
|
|
Storage capacity |
30,000 |
|
|
Basic configuration |
processor |
Cortex-M4 |
|
Display screen |
2.4’’ TFT LCD 240×320 |
|
|
Charging port |
TYPE-C USB |
|
|
Charging voltage |
5V/2A |
|
|
button |
4 buttons |
|
|
|
External Bluetooth printer |
|
|
lighting |
|
|
|
Main battery |
3200mAh/4.2V lithium battery |
|
|
Instrument weight |
Approximately xxx grams |
|
|
Main unit size |
Length × Diameter: |
|
|
Communication (optional) |
GNSS |
L1-GPS、B1-BeiDou |
|
4G-CAT1 |
Band3、Band5、Band8(3GPP Rel.13 and Rel.14) |
|
